Ultrasonic Thickness Gauge SCS-UTG-2602 – Digital Ultrasonic Thickness Meter, 1.2–225 mm Measuring Range, 5 MHz Probe, LCD Display

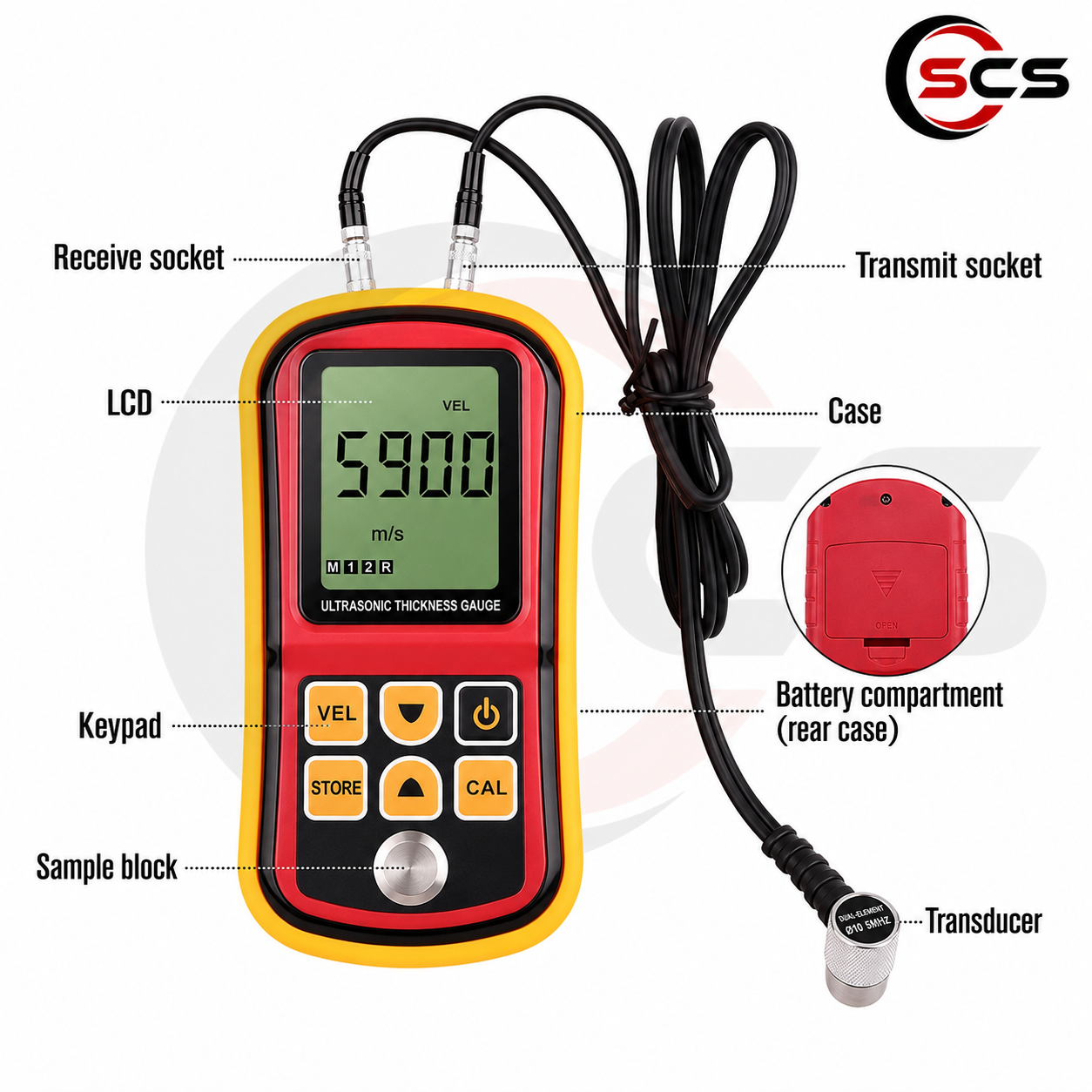

The Saksham Certification Services Ultrasonic Thickness Gauge SCS-UTG-2602 is a portable digital ultrasonic thickness measurement instrument designed for non-destructive testing (NDT) and material inspection. It enables thickness measurement from one accessible side of a component, making it useful for checking pipes, tanks, sheets, plates, vessels, structural components and other suitable materials. The instrument uses an ultrasonic transducer to measure material thickness and provides readings on a clear LCD display. With a 1.2–225 mm measuring range for steel, 0.1 mm resolution and adjustable sound-velocity settings, the gauge can be used across a wide range of inspection applications. Comparable SCS-UTG-2602 specifications also list a 5 MHz working frequency, automatic calibration, sound-velocity measurement and data storage/recall functions. The gauge is suitable for inspection of steel, copper, aluminium, plastic, glass, ceramics and other ultrasonic-transmissive materials, subject to material properties and suitable probe coupling. It is particularly useful for quality-control departments, fabrication workshops, maintenance teams, testing laboratories, engineering organizations and NDT inspection activities.
